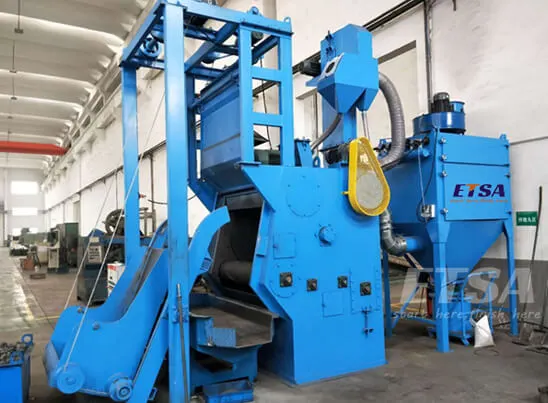

Tumble Belt Shot Blasting Machine

Name: Tumble Belt Shot Blasting Machine
Brand: Qingdao Evertech Sasi Industry Co., Ltd.

A tumble belt shot blasting machine, also sometimes called a loop belt machine, is another type of industrial machine used for cleaning and surface treatment. It works by continuously tumbling workpieces inside a chamber using a conveyor belt made of rubber or steel.

Send Inquiry

Specification of Tumble Belt Shot Blasting Machine

Tumblast Machine with Rubber Belt

Type	ET200R	ET600R
Conveyor belt	Rubber	Rubber
Productivity(t/h)	0.6-1.2	1.5-2.5
Feed amount (kg)	200	600
Max. weight of single piece(kg)	10	30
Diameter of end disk(mm)	Ø650	Ø1000
Effective volume(m³)	0.15	0.3
Number of blast wheel	1	1/2
Blast wheel power(kW)	7.5/11	11/15
Auto loading&unloading system	Optional	Optional

Tumblast Machine with Steel Belt

Type	ET1300S	ET3500S
Conveyor belt	Hardened steel/ Manganese steel	Hardened steel/ Manganese steel
Productivity(t/h)	5-6	10-12
Feed amount (kg)	1300	3500
Max. weight of single piece(kg)	230	363
Diameter of end disk(mm)	Ø1090	Ø1245
Effective volume(m³)	0.43	0.79
Number of blast wheel	1/2	1/2
Blast wheel power(kW)	11/15/18.5	11/15/18.5
Auto loading&unloading system	Optional	Optional

*Slide to find out more.

Advantages of Tumble Belt Shot Blasting Machines

High Efficiency: The continuous processing nature allows for a fast turnaround of parts, making them ideal for high-volume production lines.
Versatility: They can handle a wide range of workpiece sizes and shapes within the machine's capacity.
Gentle Processing: The tumbling motion is relatively gentle on parts compared to some other blasting techniques, making them suitable for delicate components.
Good Mixing: The continuous movement ensures all surfaces of the workpieces are exposed to the abrasive stream for even cleaning.
